Outlaw Project .... Page 3...

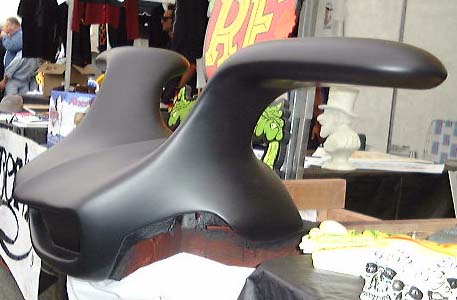

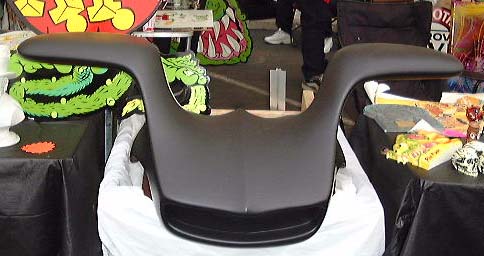

The Members of the Roth Estate in conjunction with, Rat Fink.Org and Kustom Art Studios are currently Offering Outlaw T-bucket bodies.

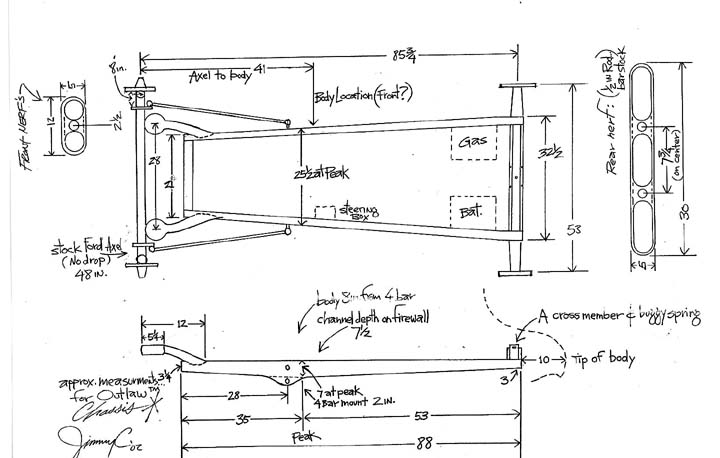

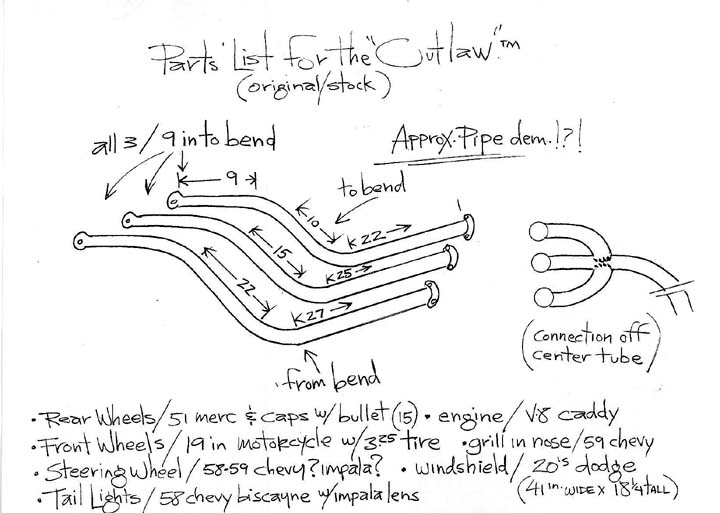

Click on the Images above for the Frame Plot and a Parts List

At this time we offer No Floor Boards, No Frame, No Gages, No Engine, Just the Body and the Nose. You have to fabricate your own mounting brackets.

Jimmy is busy designin' up a Coupe and a Open Touring Phaeton type body too.

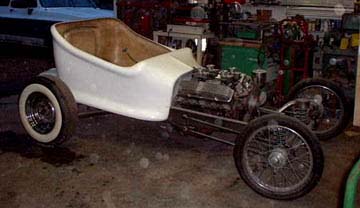

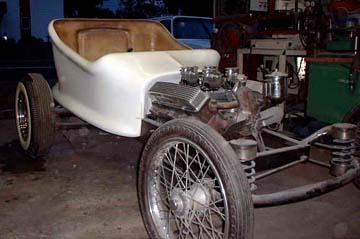

Mark Moriarity was one of the first to receive his Outlaw body and this is what his car looks like so far. he pretty much has all the parts needed to fabricate a perfect duplication. mark owns several Roth Vehicles and just finished his own Kustom "The Futurian" last year..

Click here for Up Dates on Mark's progress and to find out how this all got started.

Outlaw build list: This list was compiled by Mark Moriarity and used to build his clone. Most of the parts are to the original specification with an exception to just a few. We have found that the Revell's scaled model of the OutLaw is extremely accurate. You can actually measure the parts off of the model and multiply by 25 to get a pretty accurate measurement.

Frame type:

Fabricated, dimensions are in Jimmy C's info supplied with the body. There is a copy that you can download on the upper left hand side just above.

Front Spring cups:

Front springs are 54 chev cut down so 3 coils show between the cups

Leaf Spring or suspension:

Model a rear xmember and leaf spring (5 leaves)

Rear End to include wheels, tires and brakes:

48 Ford rear..50 Merc wheels..670x15 tires

Front tire and wheel type spindles:

325x19 Avon Speedmaster tires, dragster wheels, Ford spindles

Front Axle:

37 Ford v8-60 front axle

Windshield:

22 Dodge roadster

Tail lights :

58 Chevy Belair

Motor:

1949 Cadillac 331, Olds moon valve covers

Manifold:

Cragar 4 x 2

Carbs / chrome tops

Stromberg 97 with SP tops

Trans:

39 Ford

Radiator location:

very small radiator behind the grille

Gauges:

SW large block logo flat glass. produced in 58 and 59

Steering Box:

41 Ford turned on its side

Other Stuff :32 Ford gas pedal, 58 Impala steering wheel, 2 40 Ford master cylinders one for the hydraulic clutch (these are mounted inside the car in front of the steering column) hand built brake and clutch pedals. hand built nerf bars, 51 Merc rear wheel covers with bullet centers, 59 Impala grille with cal custom dash knobs.

We have also started an E-group for the OutLaw Project where owners and enthuses can get together and share their Outlaw experience. Click This link to Sign up or for more information get go to our contact page and get a hold of Moldy he'll clue ya in.

Only inquire if you are serious Please.

Click on the image for a closer Look
